First, the multi-functional reactor overview:
The multi-functional dispersion reactor combines low-speed strong stirring and high-speed dispersion in one function, and has good adaptability to medium-high viscosity and thixotropic materials. Stirring and dispersing are carried out at the same time to achieve the desired effect. This machine is suitable for stirring, dissolving, dispersing and adjusting various materials. It is easy to operate and adaptable. It is the best stirring, dispersing and other multifunctional reaction equipment.

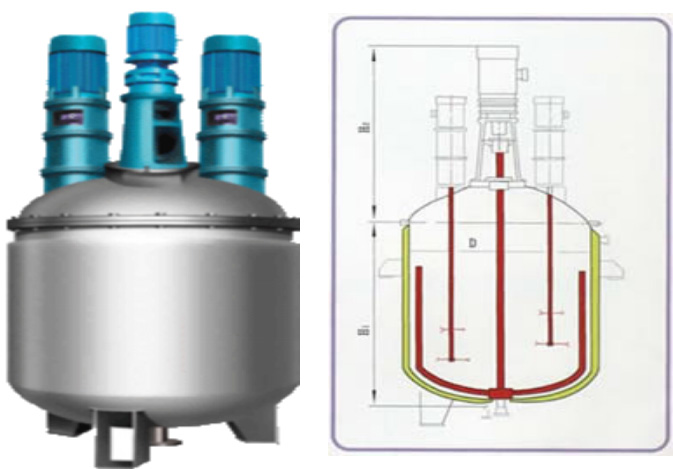

Second, multifunctional reaction kettle picture:
Third, the multi-functional reactor specifications and technical parameters:
Parameters | Model number | |||||||
FS-2 | FS-3 | FS-5 | FS-6 | FS-8 | FS-10 | FS-12 | ||
Capacity m3 | 2 | 3 | 5 | 6 | 8 | 10 | 12 | |
Stirring power kw | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 13 | 14.3 | |
Stirring speed r/min | 50 | 50 | 50 | 50 | 41 | 41 | 41 | |
Mixer diameter mm | 1300 | 1500 | 1700 | 1700 | 1900 | 2100 | 2300 | |
Distributed power kw | 13/16 | 13/16 | 22/24 | 22/28 | 22/28 | 26/34 | 30/42 | |
Number of scattered disks | 2 | 4 | 4 | 4 | 4 | 6 | 6 | |
Dimensins | D mm | 1400 | 1600 | 1600 | 1800 | 2000 | 2200 | 2400 |
M1 mm | 1650 | 1765 | 2040 | 2400 | 2400 | 2950 | 3100 | |
M2 mm | 1900 | 2000 | 2200 | 2500 | 2500 | 2570 | 2620 | |
